Anchors

• Color
• WHITE

• Diameter
• 8 Millimeter (mm)

• Dimension (L*W*H)
• 112 X 8 Millimeter (mm)

• Grade
• SS 310

• Heat Treatment
• Tempered

• Height
• 110 Millimeter (mm)

• Length
• 110 Millimeter (mm)

• Product Type
• SS 310 UV ANCHOR

• Size
• 110 X 8 MM

• Standard
• ISO

• Thickness
• 8 Millimeter (mm)

• Thread Type
• NO

• Usage
• KILN

• Use
• INSULATION

• Weight
• 0.085 Grams (g)

• Width
• 8 Millimeter (mm)

• Diameter
• Flat profile; no diameter

• Dimension (L*W*H)
• 135 mm x 40 mm x 9 mm (Example; customized available)

• Grade
• Mild Steel / Carbon Steel

• Head Type
• Other, Flat Head

• Heat Treatment
• Other, Stress Relieved

• Length
• Up to 300 mm or as required

• Standard
• IS 456, EN 1090 or as per drawing

• Surface Treatment
• Other , Hot Dip Galvanized / Plain / Zinc Plated

• Thickness
• 6 mm to 25 mm

• Thread Type
• NA (No thread)

• Use
• Construction, Precast Concrete Applications

• Diameter
• 10 mm

• Dimension (L*W*H)
• 100 mm x 30 mm x 5 mm

• Grade
• High Tensile Steel

• Head Type
• Other, UV Shape

• Heat Treatment
• Other, Case Hardened

• Length
• 100 mm

• Standard
• IS 1367/ISO 898

• Surface Treatment
• Other , Zinc Plated

• Thickness
• 5 mm

• Thread Type
• NA (Non-threaded)

• Use
• For heavy-duty fastening in concrete and brickwork

• Diameter
• 6 mm to 20 mm

• Dimension (L*W*H)
• Custom as per design or drawing

• Grade
• SS 304, SS 310, Inconel, Mild Steel

• Head Type
• Other, V-shape, Y-shape, U-shape, Crook Anchor, etc.

• Heat Treatment
• Other

• Length
• 100 mm to 300 mm (can be customized)

• Standard
• ASTM/BS/IS as required

• Surface Treatment
• Other

• Thickness
• 3 mm to 12 mm

• Thread Type
• Non-threaded

• Use
• For supporting and fastening refractory linings in furnaces, kilns, and reactors

• Color
• WHITE

• Diameter
• 5 Millimeter (mm)

• Dimension (L*W*H)
• 75 X 5 Millimeter (mm)

• Grade
• SS 310

• Heat Treatment
• Tempered

• Height
• 5 Millimeter (mm)

• Length
• 75 Millimeter (mm)

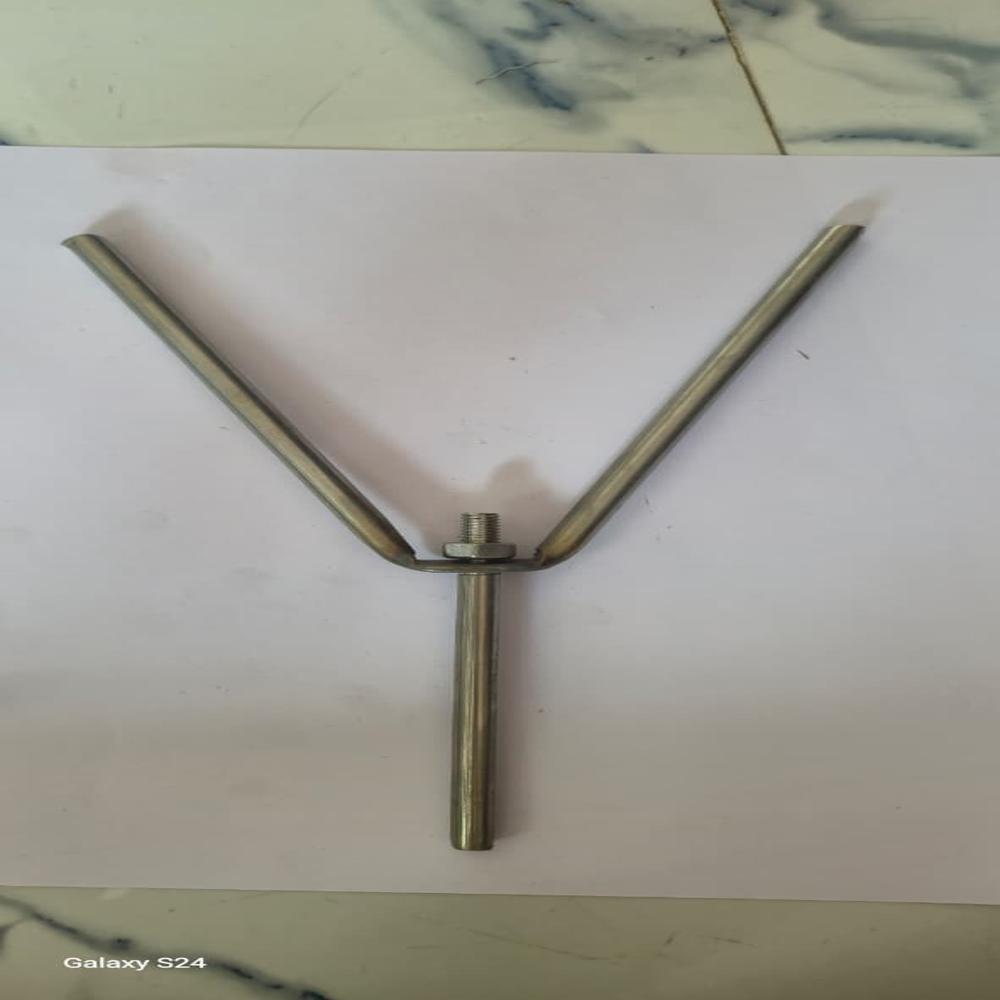

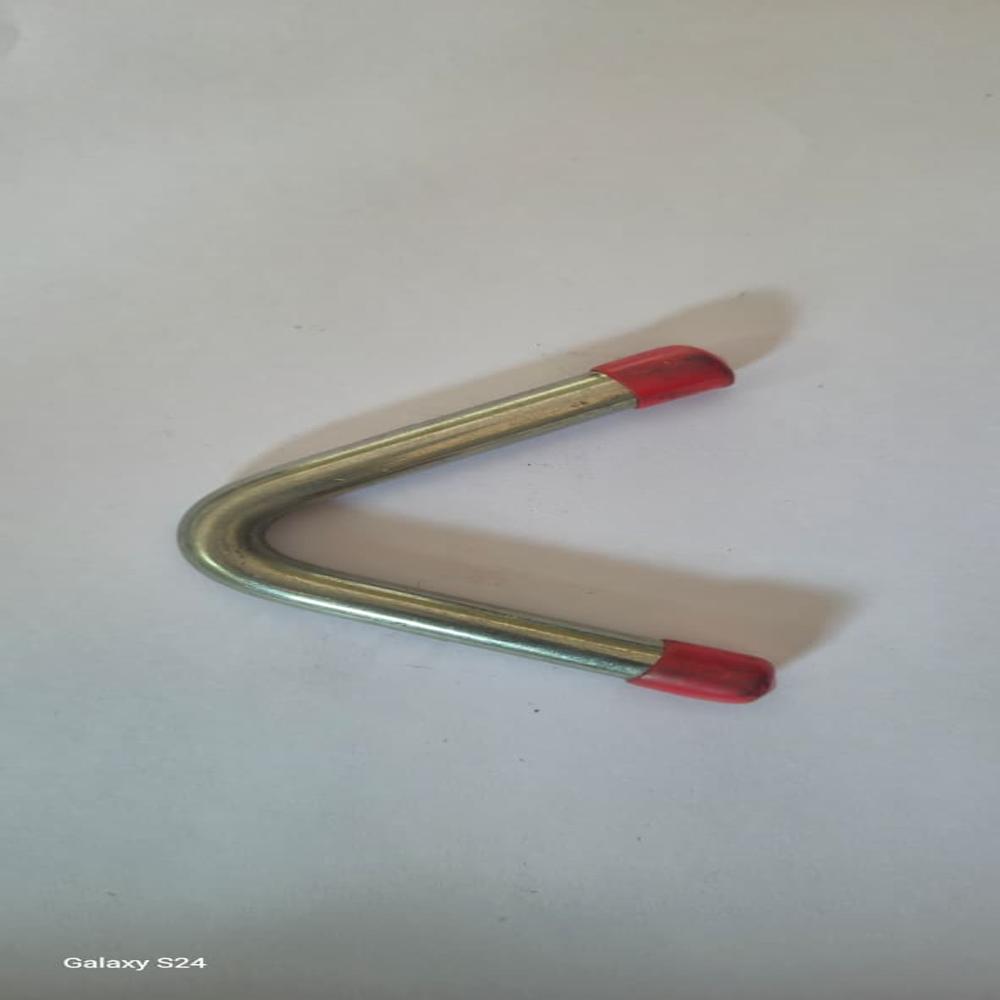

• Product Type

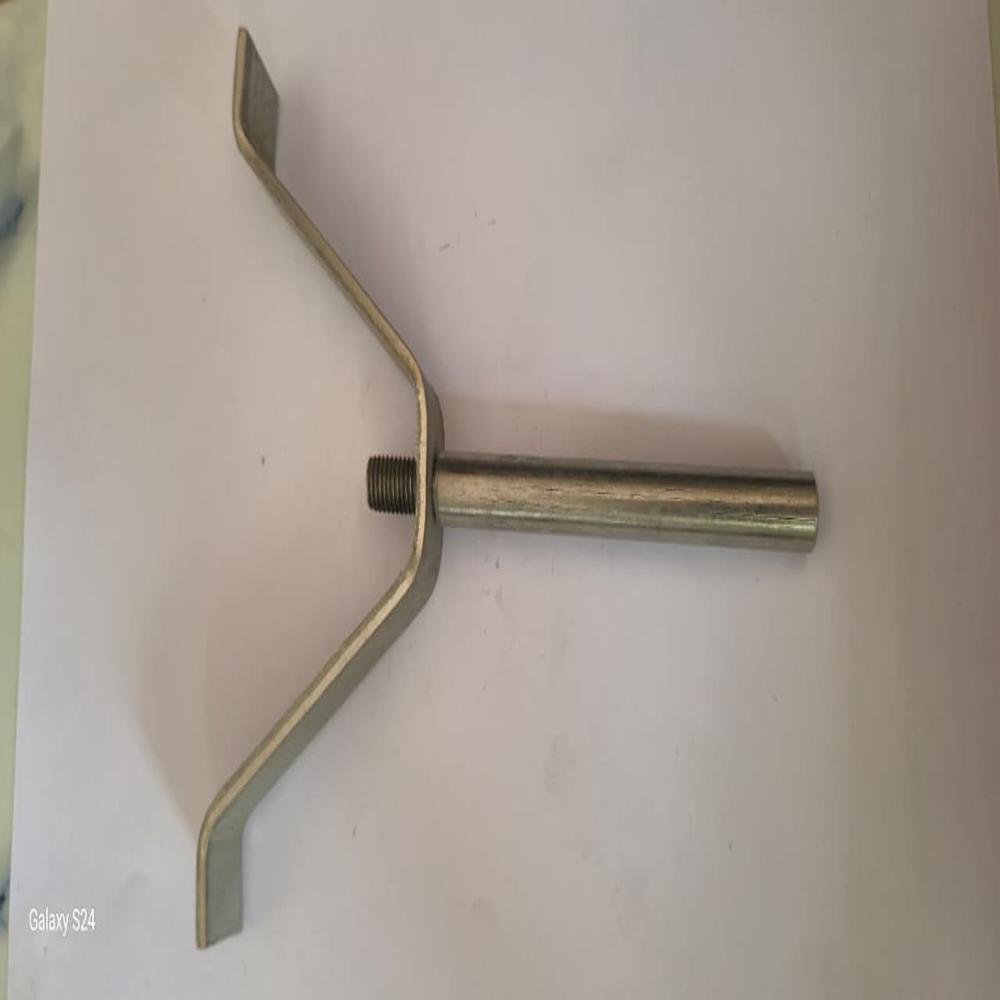

• SS 310 V ANCHOR

• Size
• 75

• Standard
• ISO

• Thickness
• 5 Millimeter (mm)

• Thread Type
• NO

• Usage
• KILN , BOILER , FURNACH

• Use
• KILN , BOILER , FURNACH

• Weight
• 0.065 Kilograms (kg)

• Width
• 5 Millimeter (mm)

• Color
• WHITE

• Diameter
• 6 Millimeter (mm)

• Dimension (L*W*H)
• 100 X 6 Millimeter (mm)

• Grade
• SS 304

• Height
• 100 Millimeter (mm)

• Length
• 100 Millimeter (mm)

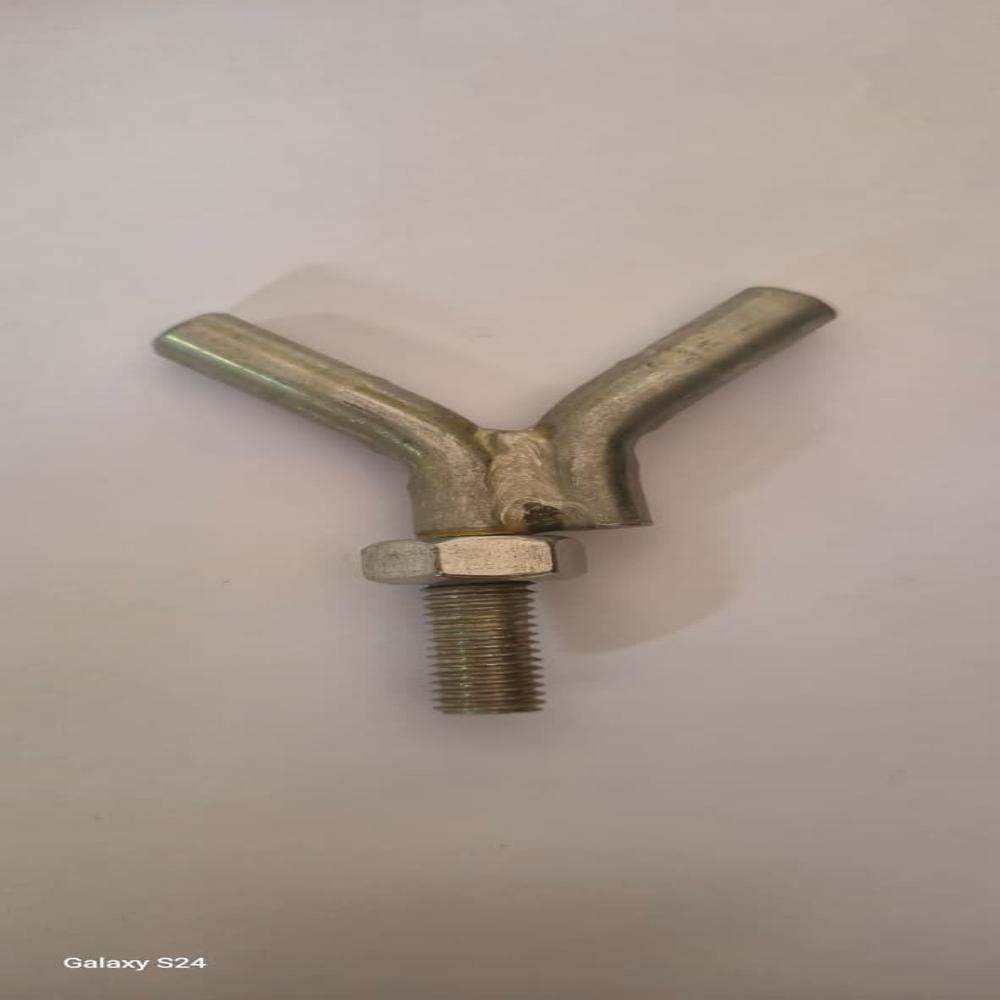

• Product Type
• UV ANCHOR

• Size
• 100 X 6 MM

• Standard
• ISO

• Thickness
• 6 Millimeter (mm)

• Thread Type
• NO

• Usage
• KILN , BOILER , FURNACH

• Use
• KILN , BOILER ,FURNACH , ROTARY

• Weight
• 100 Grams (g)

• Width
• 6 Millimeter (mm)

• Color
• WHITE

• Diameter
• 25 Millimeter (mm)

• Dimension (L*W*H)
• 1000 X 1000 X 25 X 2 Millimeter (mm)

• Grade
• SS 310

• Heat Treatment
• Quenched, Tempered, Other

• Height
• 1000 Millimeter (mm)

• Length
• 1000 Millimeter (mm)

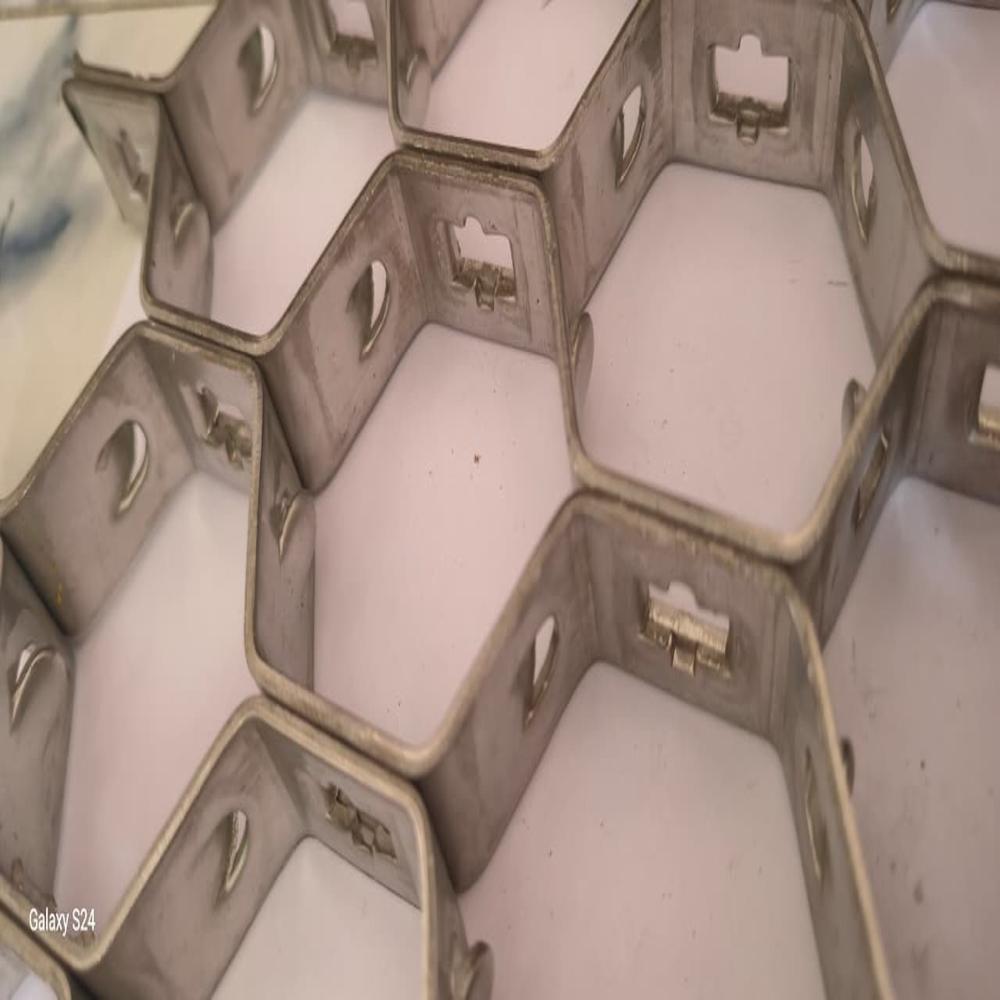

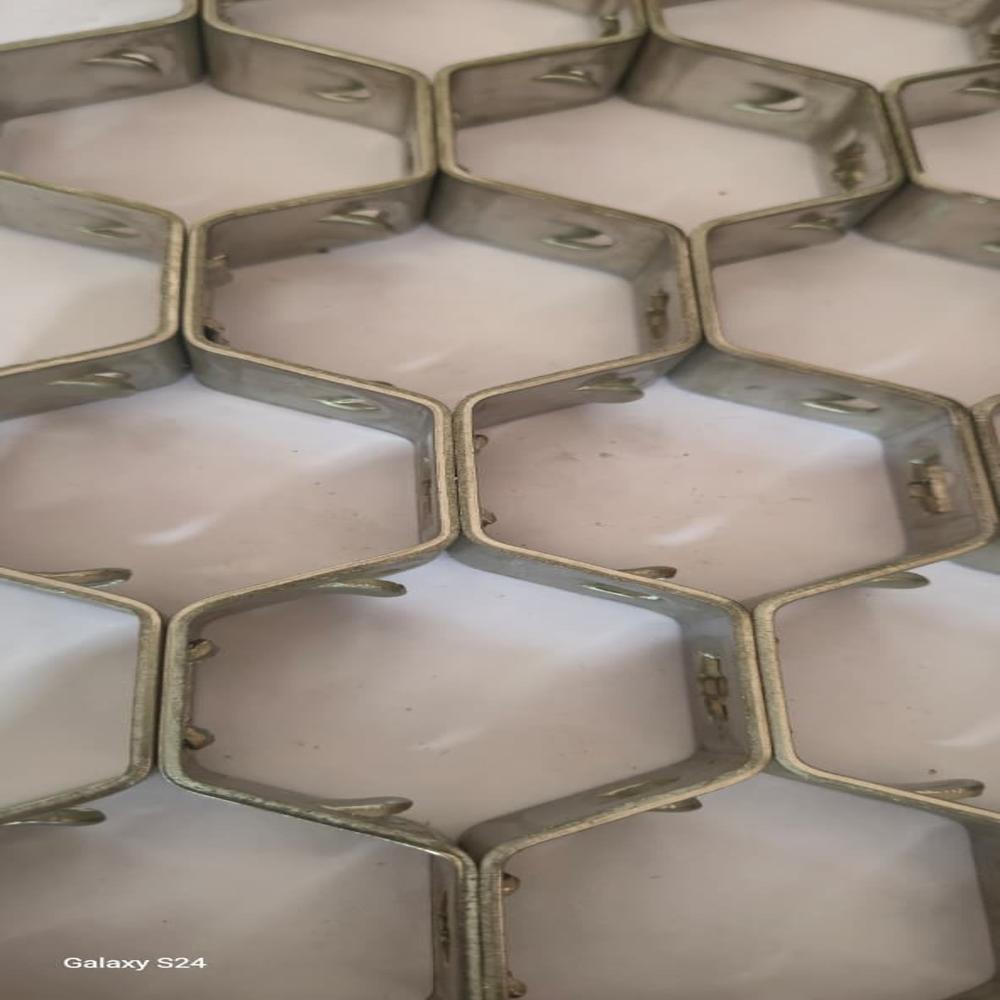

• Product Type
• HEXMESH

• Size
• 1000 X 1000 X 25X 2 MM

• Standard
• ISO

• Thickness
• 2 Millimeter (mm)

• Thread Type
• NO

• Usage
• BELLOW

• Use
• BELLOW

• Weight
• 14 Kilograms (kg)

• Width
• 25 Millimeter (mm)

• Diameter
• Mesh opening diameter: 25 mm 75 mm

• Dimension (L*W*H)
• Custom sizes available; standard mesh panel 600 mm x 2400 mm

• Grade
• SS 304 / SS 316 / SS 310

• Head Type
• Other, V-head, Y-head, W-head anchors

• Heat Treatment
• Other

• Length
• Anchor length: 50 mm 250 mm

• Standard
• ASTM / IS / DIN

• Surface Treatment
• Other

• Thickness
• 2 mm 8 mm

• Thread Type
• No thread (mesh & anchors usually do not have threads)

• Use
• Refractory lining, furnace, kilns, and vessel protection

• Diameter
• 5 mm - 20 mm

• Dimension (L*W*H)
• As per drawing / custom requirement

• Grade
• SS 304, SS 310, SS 316, Mild Steel

• Head Type
• Other, V-shaped, Y-shaped, Zig-zag, Crook, etc.

• Heat Treatment
• Other

• Length
• 50 mm - 500 mm

• Standard
• ASTM, DIN, IS

• Surface Treatment
• Other

• Thickness
• 3 mm - 12 mm

• Thread Type
• Plain / Threaded

• Use
• Fixing and securing refractory linings

• Color
• White

• Diameter
• 8 Millimeter (mm)

• Dimension (L*W*H)
• 112 x 8 mm Millimeter (mm)

• Grade
• SS 310

• Head Type
• Other

• Heat Treatment
• Other

• Height
• 112 Millimeter (mm)

• Length
• 112 Millimeter (mm)

• Product Type
• Refractory Anchors

• Size
• 112 x 8 mm

• Standard
• SS 310

• Surface Treatment
• Polishing, Bright

• Thickness
• 8 mm Millimeter (mm)

• Thread Type
• 00

• Usage
• Cement plant kiln furnace

• Use
• Kiln

• Weight
• 0.098 Grams (g)

• Width
• 8 Millimeter (mm)

• Color
• WHITE

• Diameter
• 6 Millimeter (mm)

• Dimension (L*W*H)
• 100 X 25 X 6 Millimeter (mm)

• Grade
• SS-310

• Head Type
• Other

• Heat Treatment
• Quenched, Tempered, Other

• Height
• 100 Millimeter (mm)

• Length
• 100 Millimeter (mm)

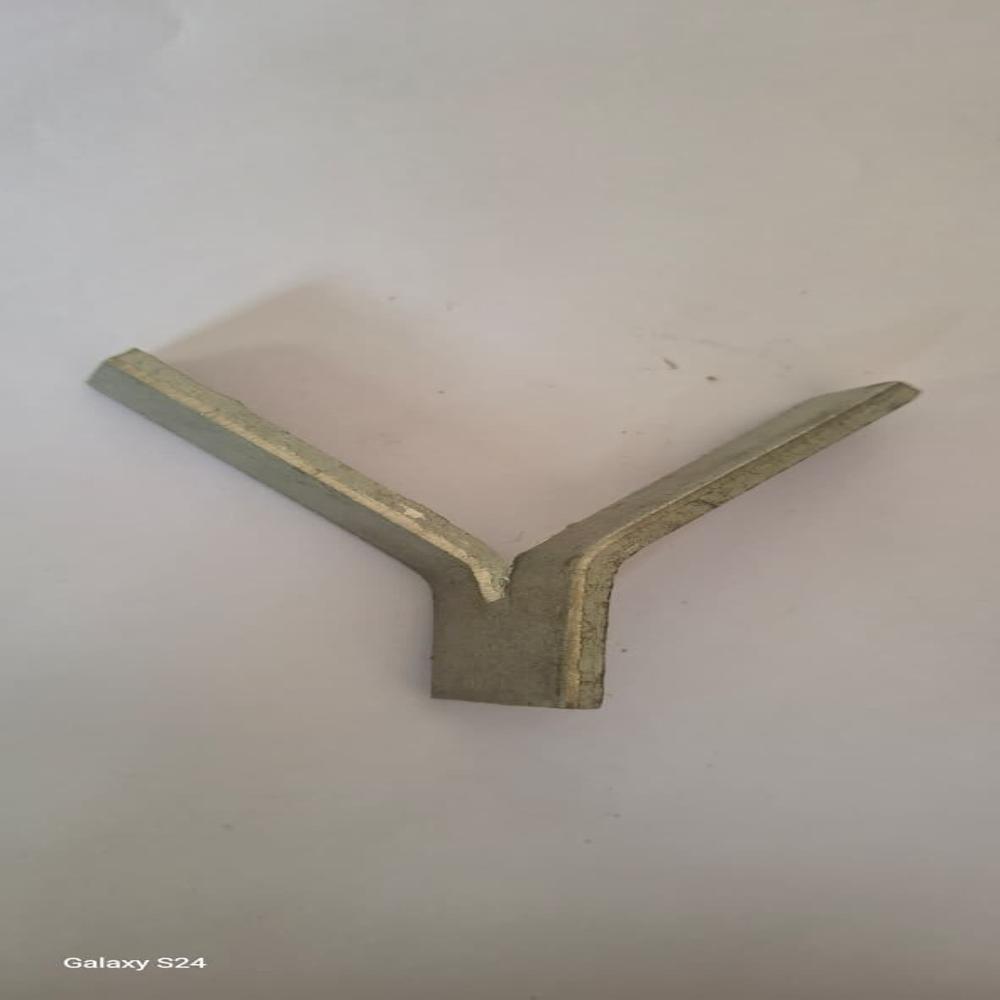

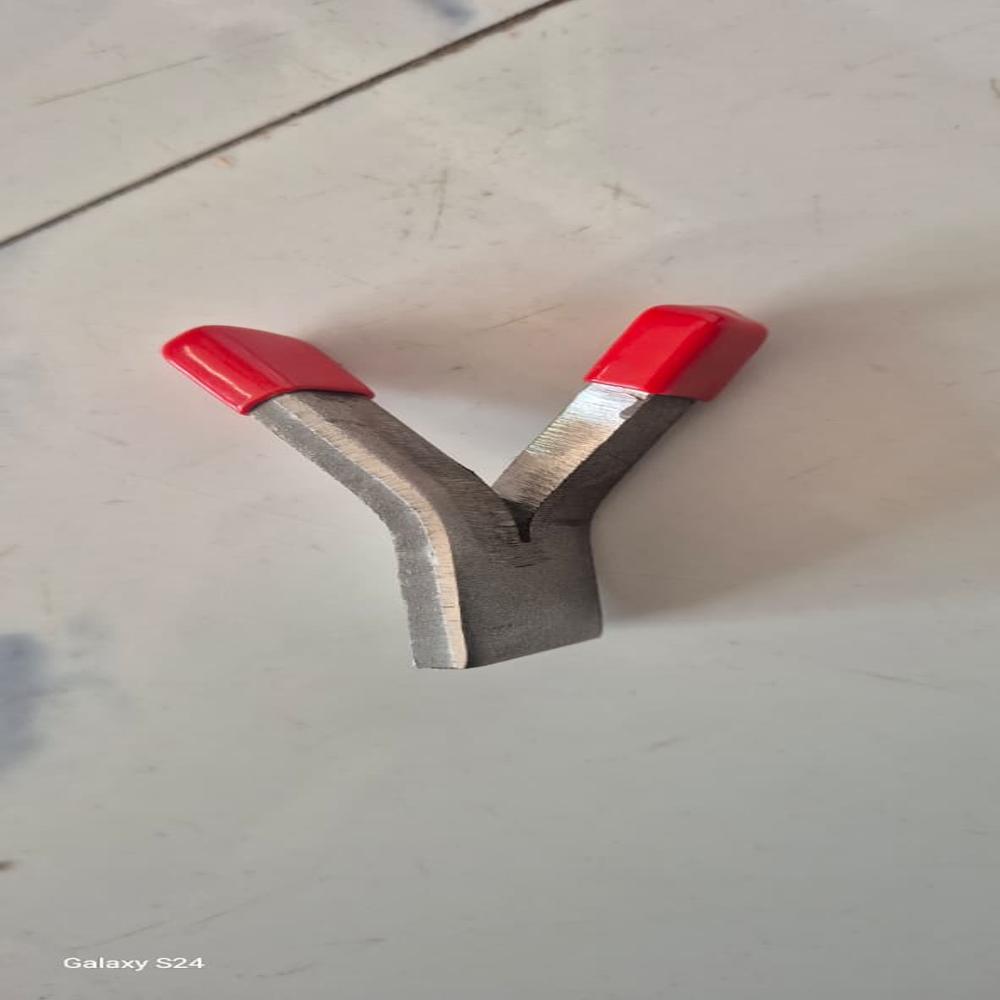

• Product Type

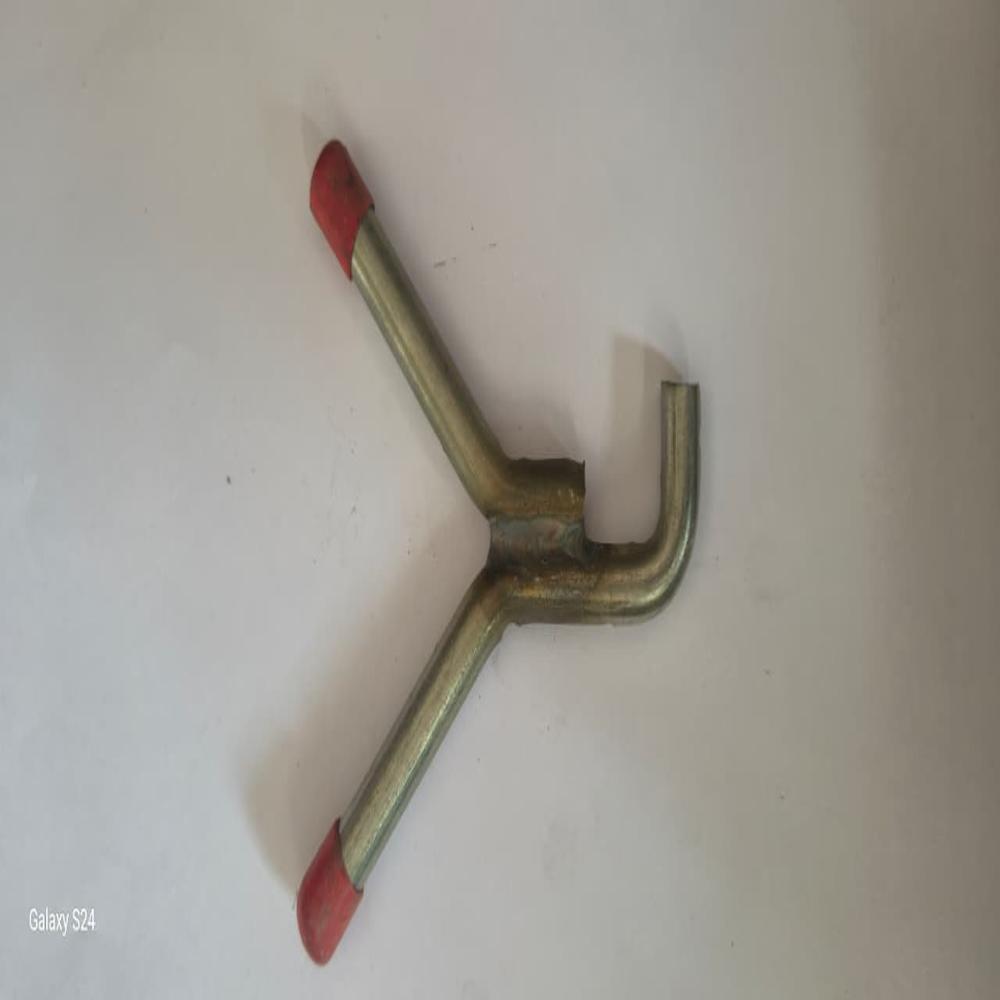

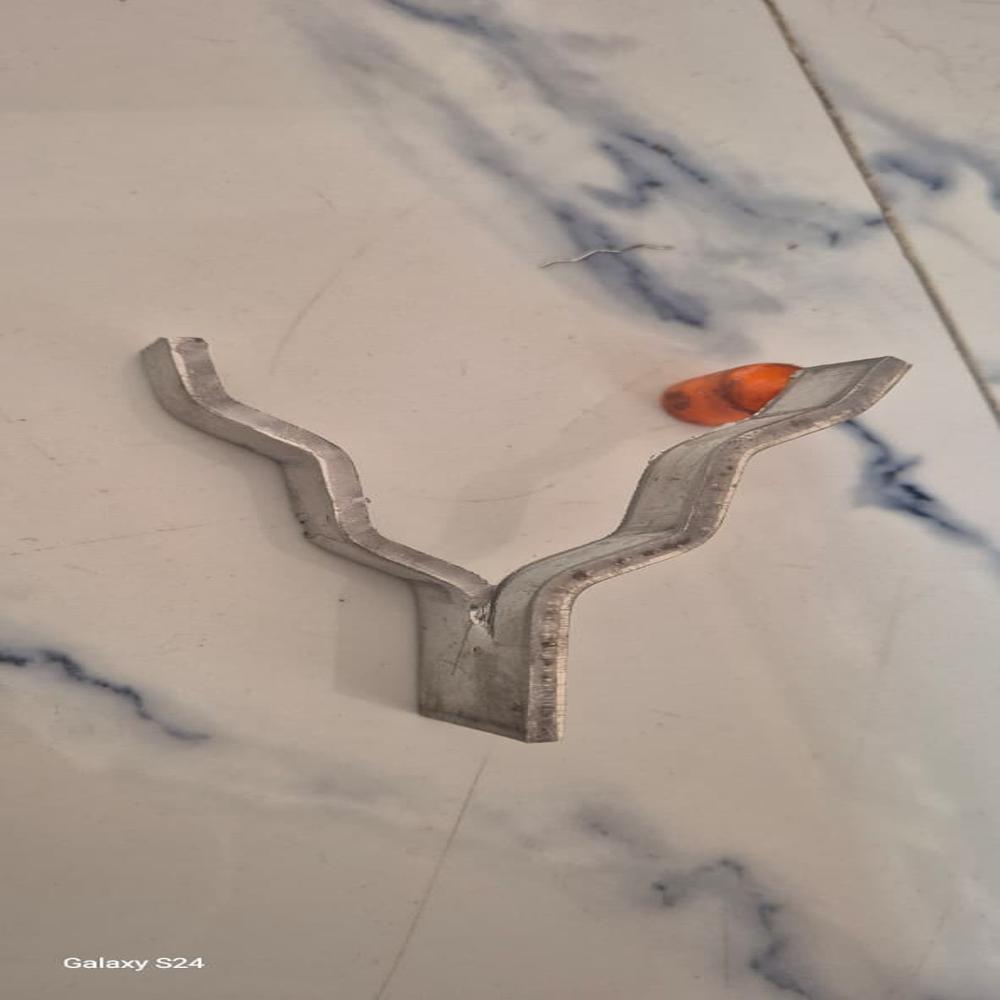

• Y ANCHOR

• Size
• 100 X 25 X 6 MM

• Standard
• ISO

• Surface Treatment
• Other

• Thickness
• 6 Millimeter (mm)

• Thread Type
• NO

• Usage
• CEMENT , POWER PLANT

• Use
• CEMENT , POWER PLANT

• Weight
• 0.096 Grams (g)

• Width
• 25 Millimeter (mm)

• Diameter
• 6mm to 16mm

• Dimension (L*W*H)
• Various dimensions available as per specifications

• Grade
• SS-310

• Head Type
• Other, Hex Head

• Heat Treatment
• Other, Case Hardened

• Length
• 40mm to 150mm

• Standard
• SS

• Surface Treatment
• Other , Zinc Plated / Polished / Galvanized

• Thickness
• Customizable as per requirement

• Thread Type
• Metric/Imperial Available

• Use
• For fixing and fastening applications in construction, automotive and other industrial sectors
